Omniwatch MicroVision 310

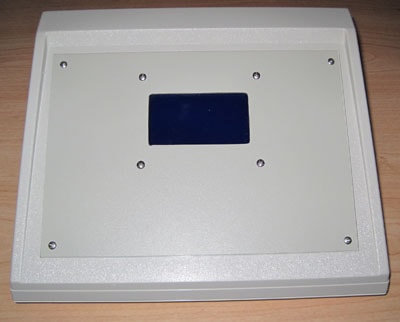

MicroVision 310 image


Mini Wireless Nurse Call System

The Microvision 310 is a low cost nurse call annunciator with numerous features. It receives 900 MHz spread spectrum transmissions from pull string stations, bed stations, pendants and door alarms. It supports up to 300 wireless devices and is fully programmable with the included software. The calls are displayed on a 8 line or 4 line 40 character display.
The door alarms have a time schedule. There are 6 relay outputs, an output for up to 250 dome lamps and an output for a radio paging transmitter for pocket pagers. The call data is recorded including response time and can be transferred to a computer to display the call data with the Omniwatch reporting software. The annunciator panel comes in a 8" X 10" X 4" desk console version.

Cut Sheet on Microvision 310
Cut Sheet on Pendant and Pull String Station
Cut Sheet on Bed Station

Featues

  • Capacity of 300 wireless devices
  • Built in radio paging interface to send a text message to a paging transmitter
  • Audible alert with an internal volume control
  • Output for an external piezo sounder
  • Has 6 relay outputs. Each device can activate 1 or more of the relays.
  • Devices can be programmed as momentary, follower or latching
  • Door alarms have an arm and disarm time schedule
  • Serial output for the Omniwatch WLP corridor dome lamps
  • Records call data including response times for reporting with a capacity of 4200 calls
  • Multiple units can be networked to transfer the call data to a computer with the Omniwatch reporting software

Uses the following wireless sensors / call stations

  • Nurse call bed station with call cord
  • Nurse call emergency pull cord station
  • Wireless pendant
  • Door alarm
  • Motion detector
  • Smoke detector
  • Universal device for any contact closure

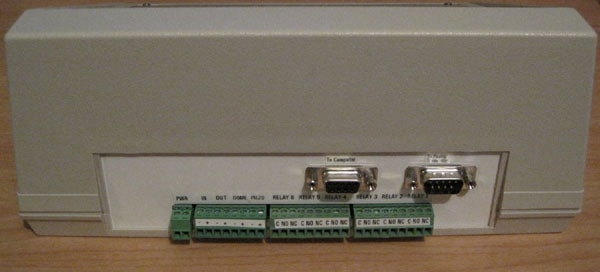

Back Panel

Back Panel

Accessories

Pager

Pager

Pull String

Pull String Station

Bed Station

Bed Station

Pendant

Pendant
